Welcome To
Unique Circle Engineering
Private Limited
Checking Fixtures
The company was formed by Mr. Parag Shah an ex–employee of TATA Motors & Bajaj Auto Ltd., who has had experience in Pattern Making and Checking Fixtures for the past 22 years. With a strong background of the automobile sector and dreams to lead the industry in its class, the company named ‘UNIQUE CIRCLE’ was Born in the year 1995.
Starting with only 2 employees, the U.C. Group now boasts a team of 114 associates and 47 Engineers and is one the leading names in automobile checking / Inspection Fixtures in India today.Unique Circle has spread its name far and wide by having done joint ventures with Companies in the USA(Triway),France(2MI) and Thailand(TKS)and in the process implemented the latest and the state of the art on the technological front, while manufacturing its inspection fixtures
Scope
Exporters of Inspection & Checking Fixtures for Sheet Metal & Plastic Components

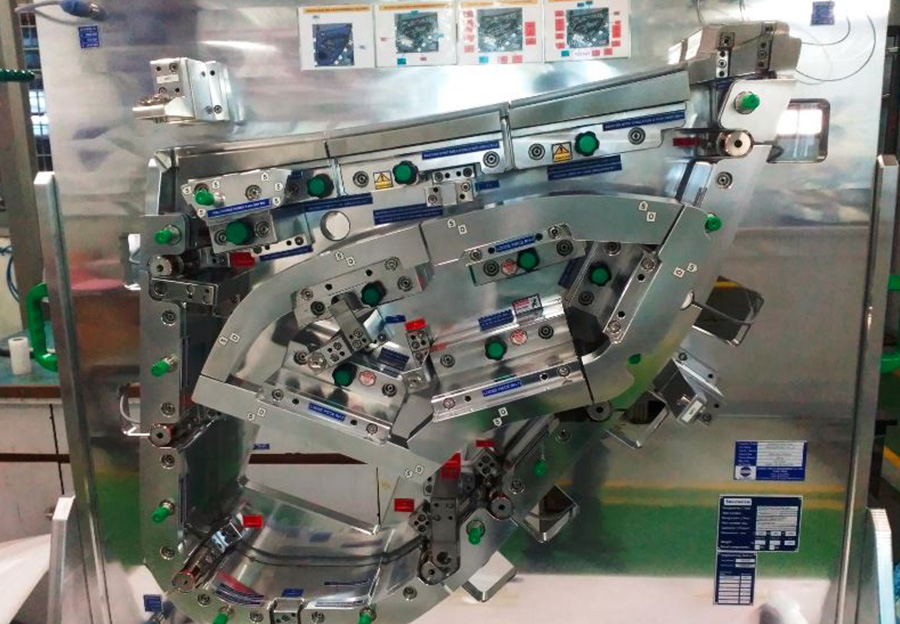

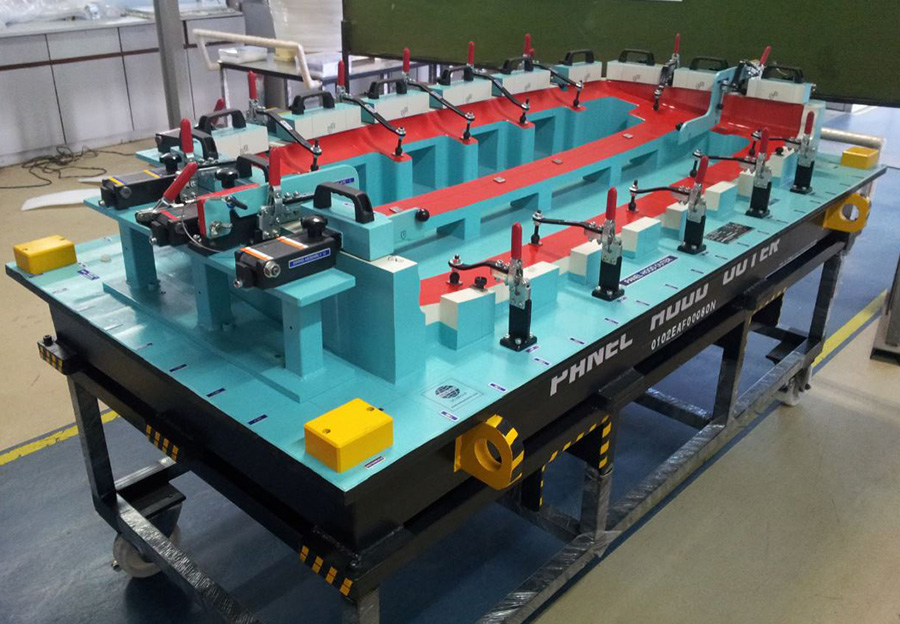

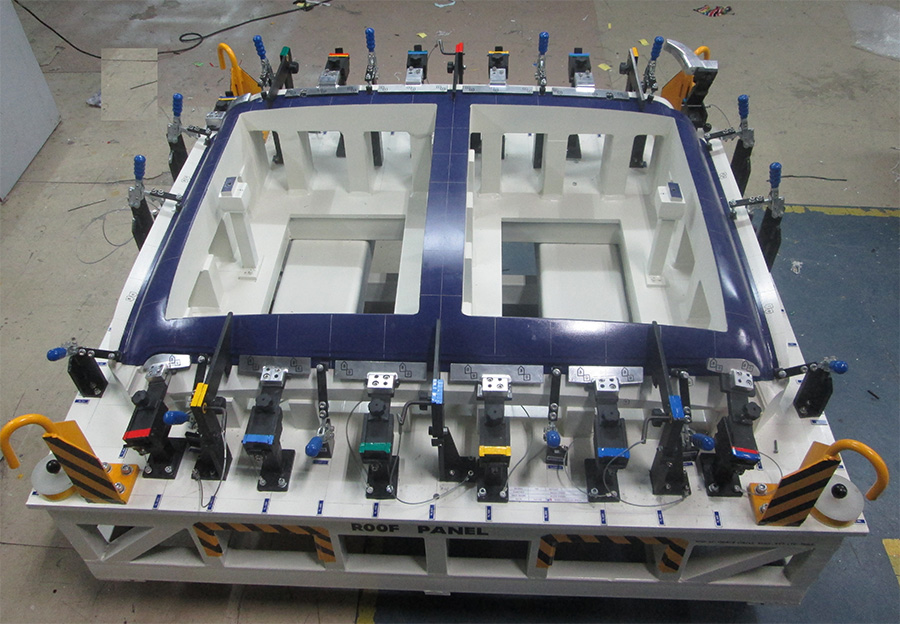

- Sheet Metal Panel Checking Fixtures

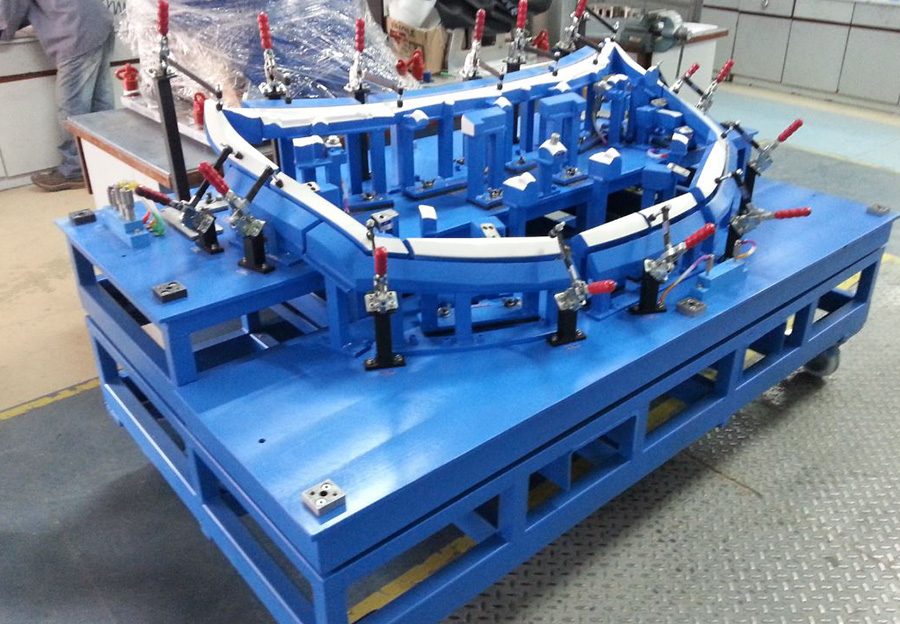

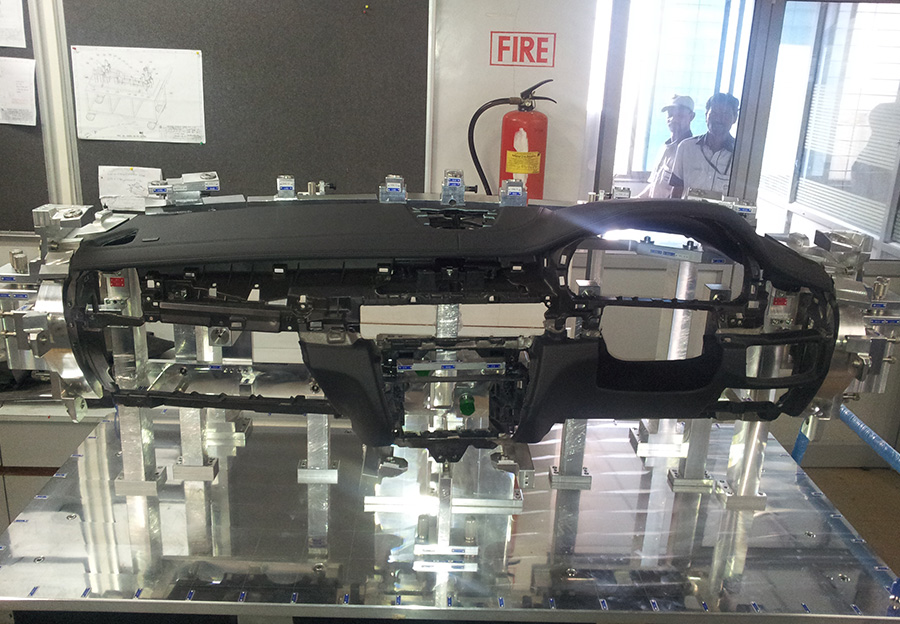

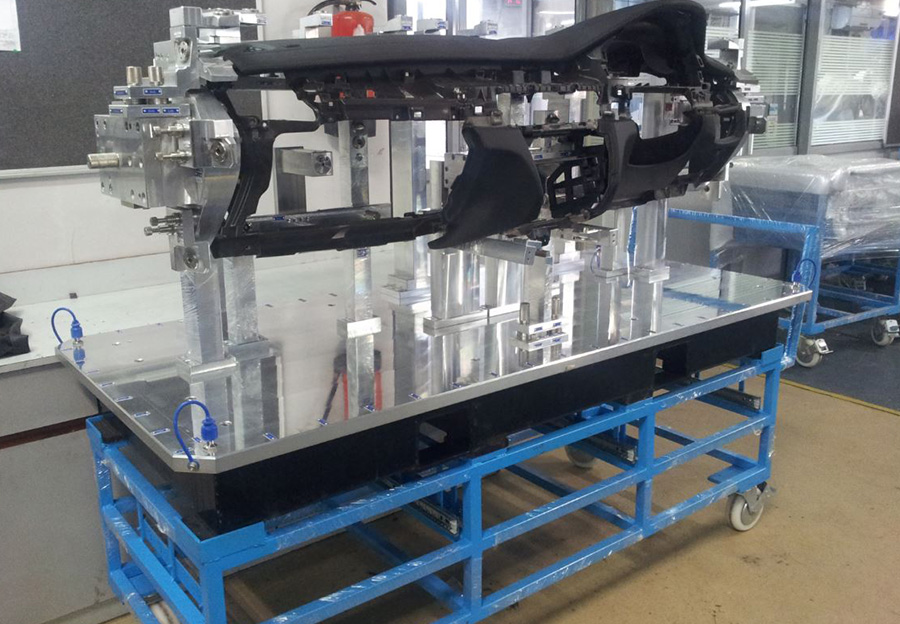

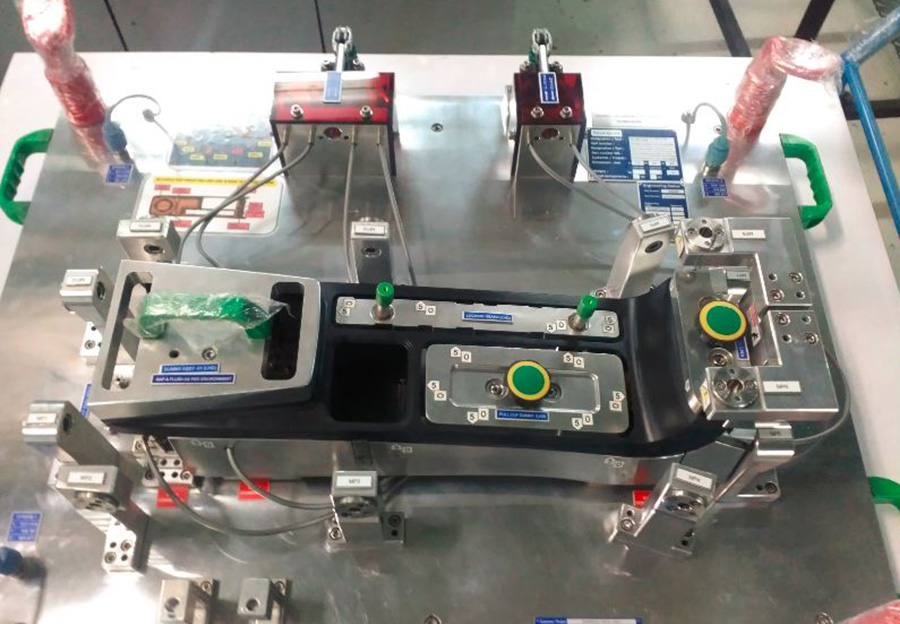

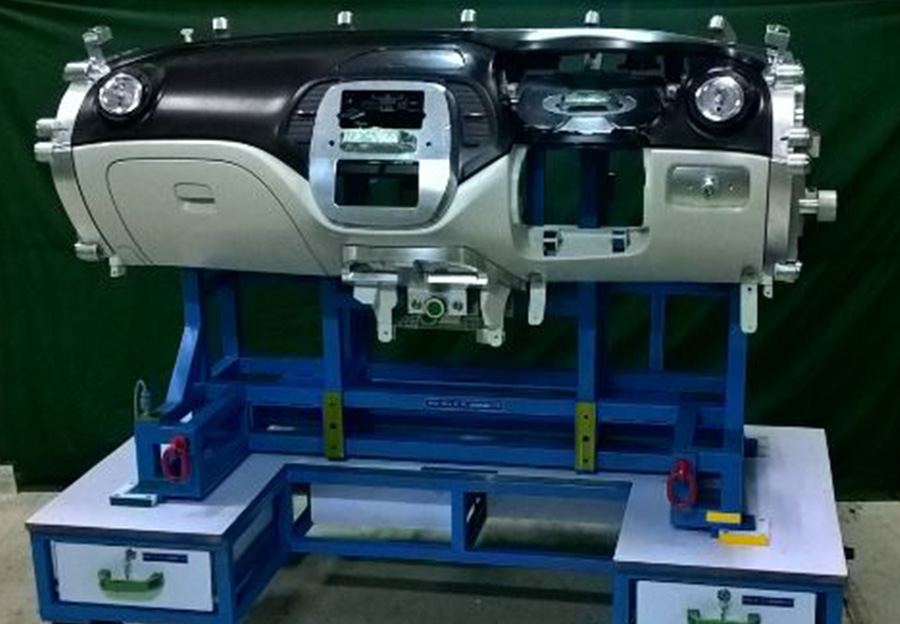

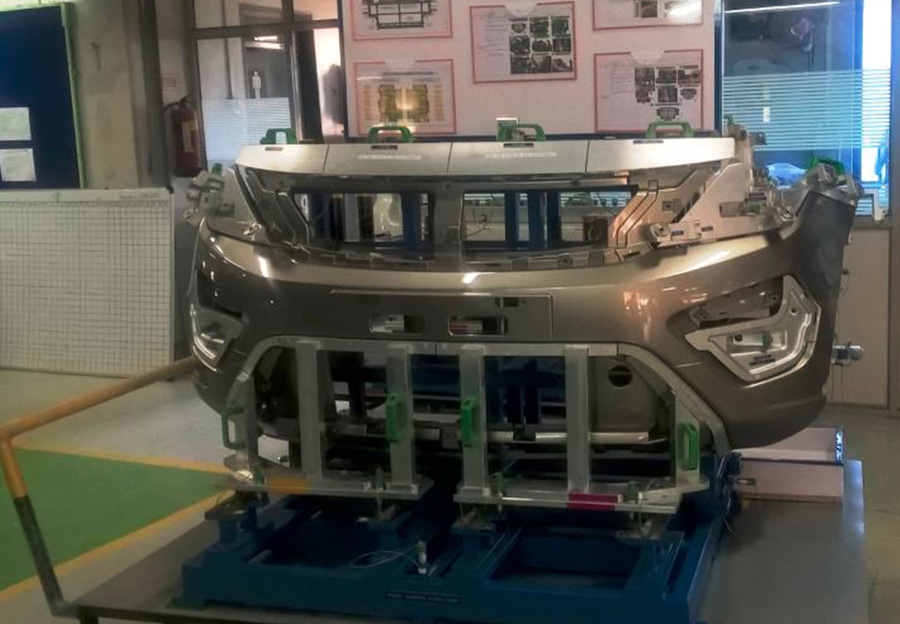

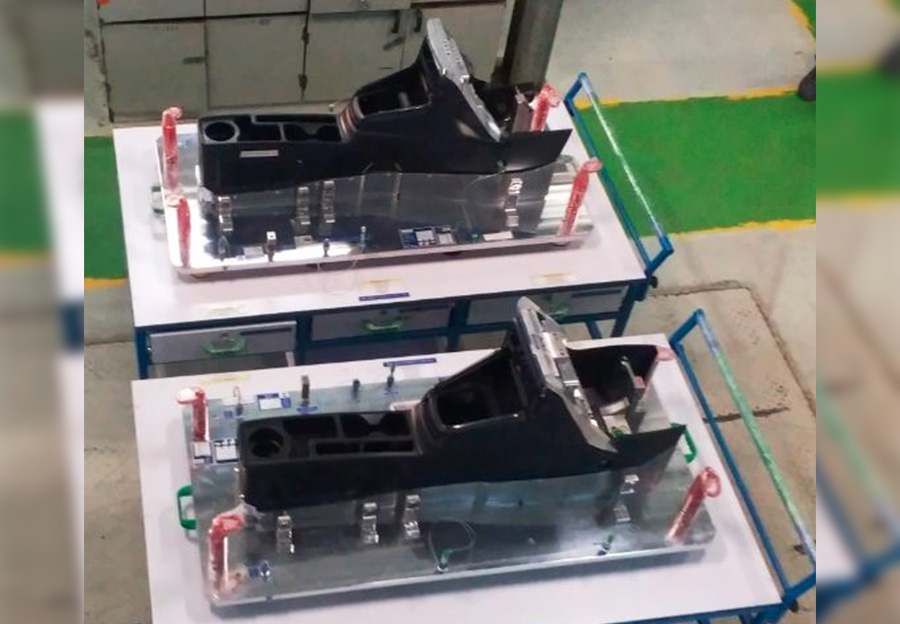

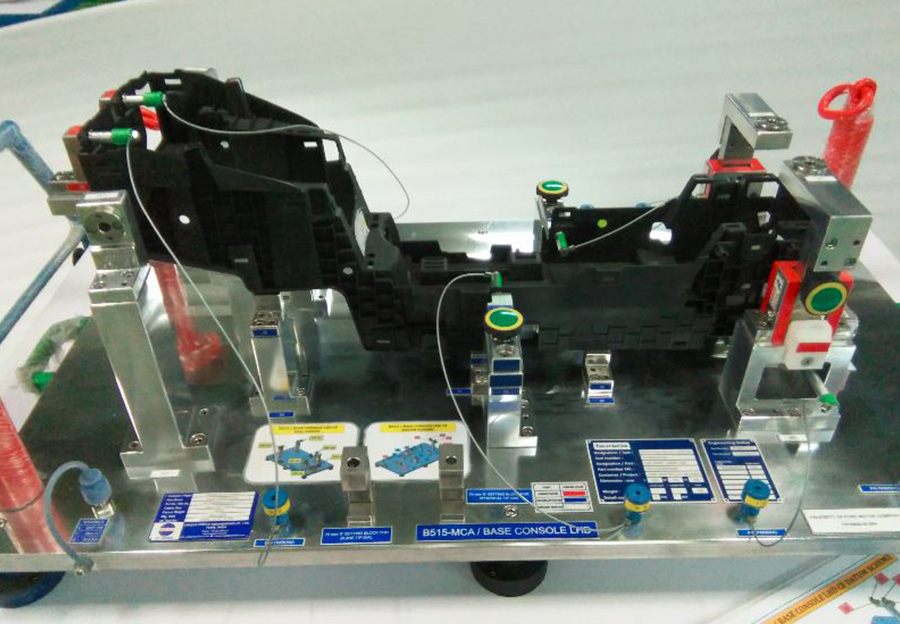

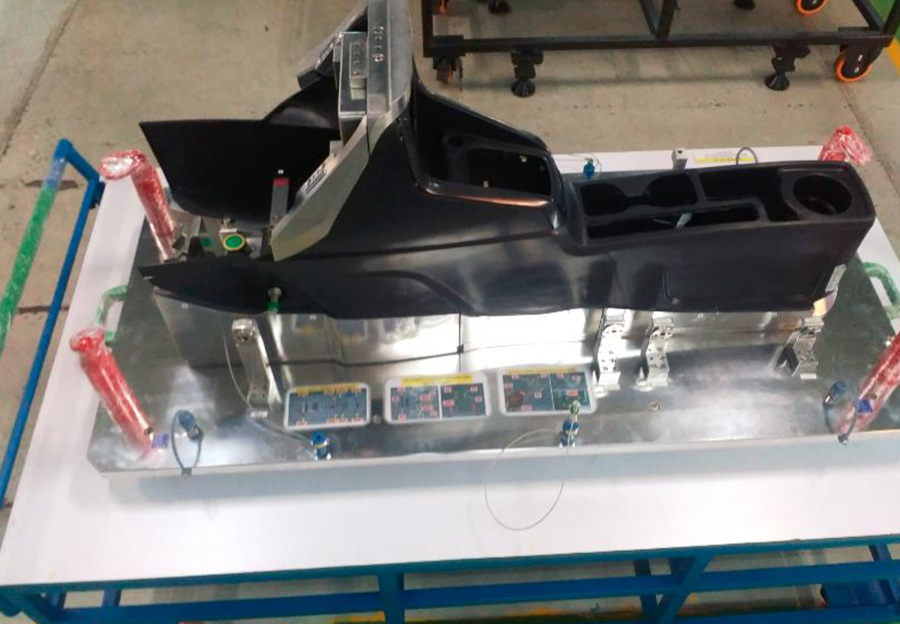

- Plastic Component Inspection Fixtures

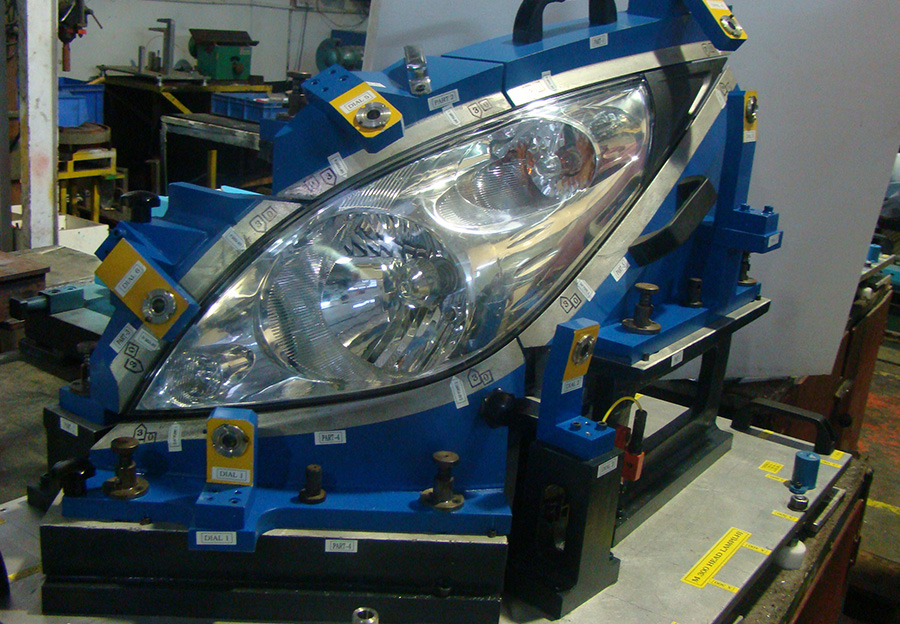

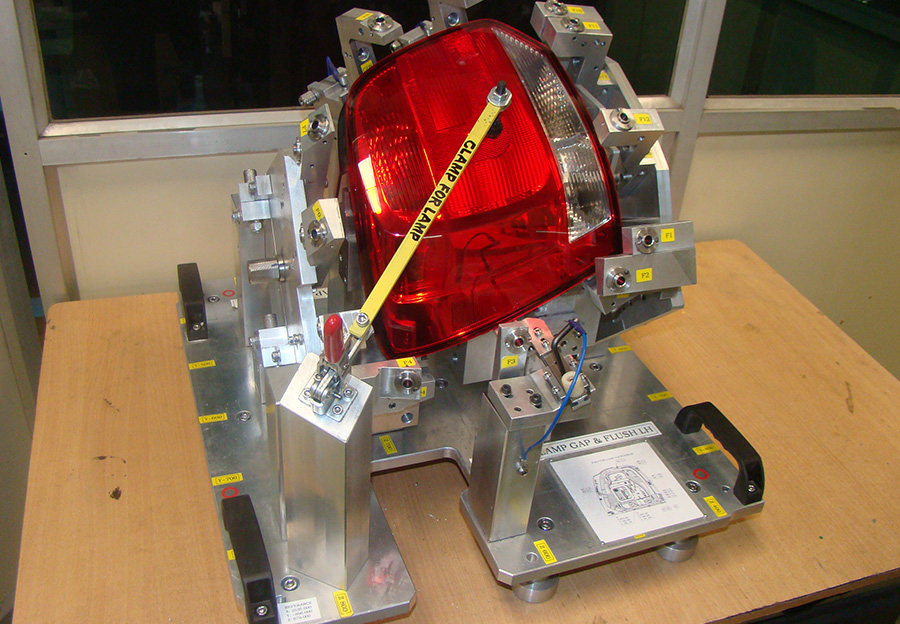

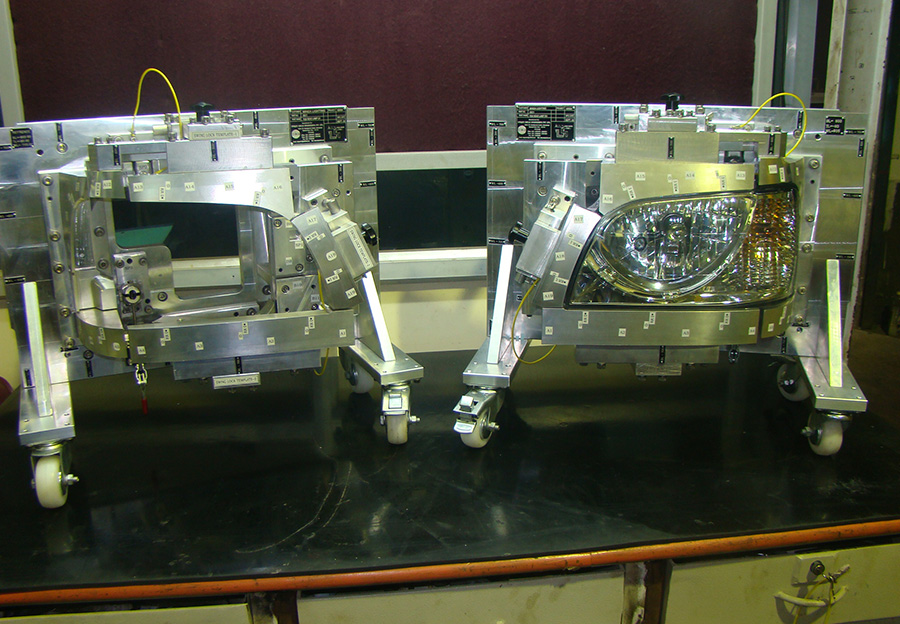

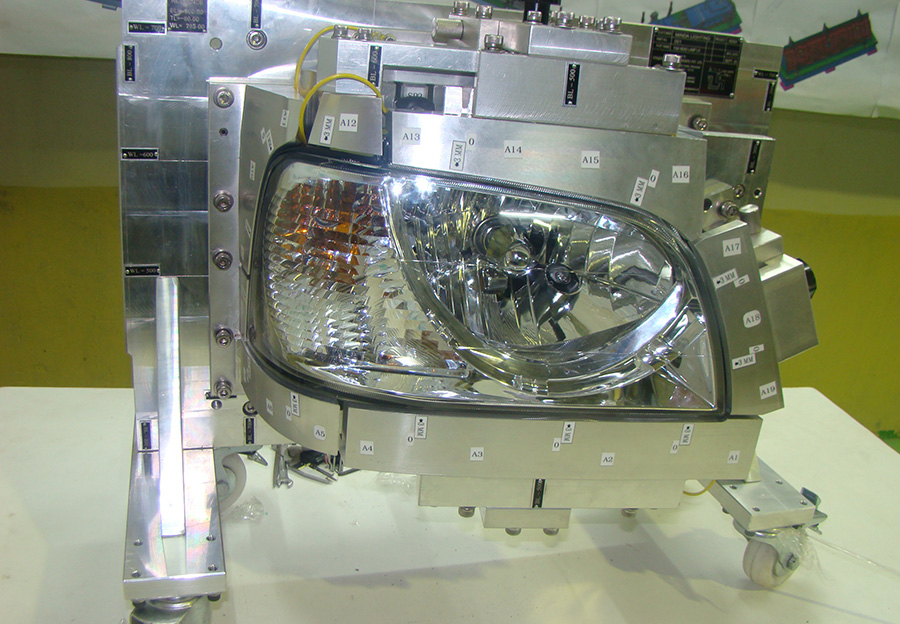

- Head lamp and tail lamp Fixtures

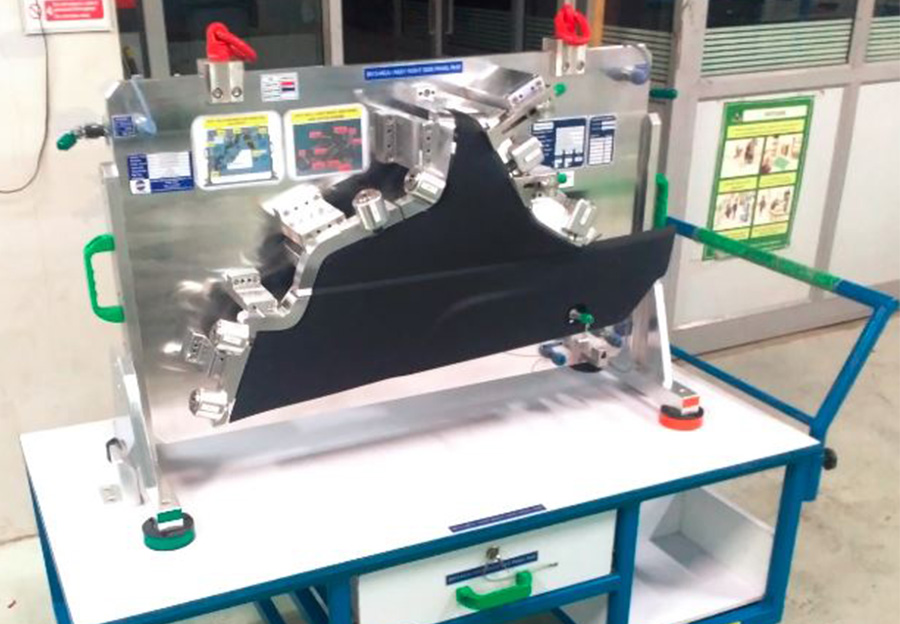

- Soft Trim Fixtures

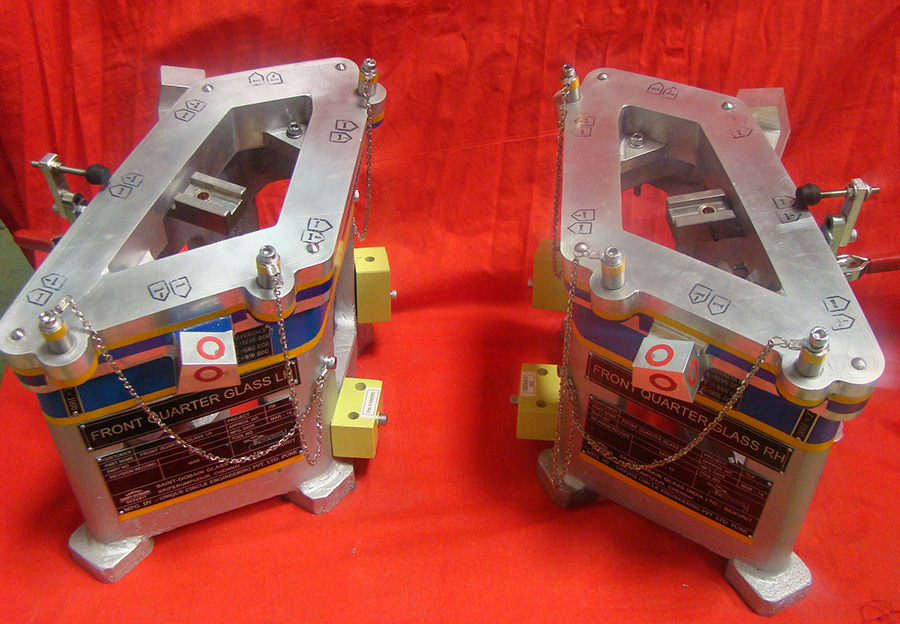

- Glass checking Fixtures
- CMM Holding Fixtures
- BIW welding fixtures
- Assembly fixtures
Our Prestigious Clients
Our Facilities

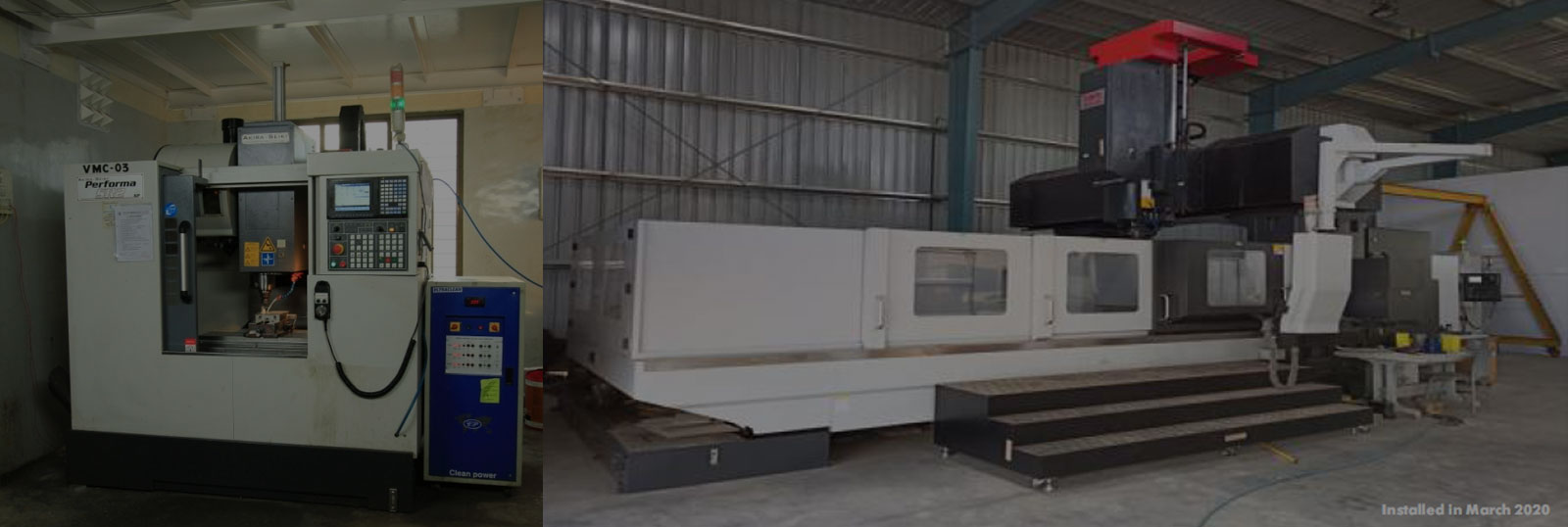

Infrastructure
| Factory Area (Group) | 53,000 sq. ft |
| VMC Machines | 9 No's |
| KAFO (TAIWAN) | 3200 X 2700 X 800mm |
| LITZ (TAIWAN) | 2000 X 1000 X 800 mm |
| AKIRA - SEIKI (TAIWAN) | 1600 X 860 X 700 mm |
| TAL (INDIA) | 1100 X 660 X 600 mm |
| AKIRA - SEIKI (TAIWAN) | 560 X 460 X 400 mm |
| Leadwell (TAIWAN) | 1100 X 660 X 600 mm |
| Jyoti (INDIA) | 1600 X 800 X 600mm |
| BFW (INDIA) | 1000 X 500 X 500mm |
Tool Room Machine
| Mill Machine (M1TR) | 6 No's:1000 X 300 X 300 mm |
| Surface Grinding | 2 No's |
| Cylindrical Grinding | 1 No's |
| Drilling Machine (Pedestal) | 2 No's |
| Weldling Machine | MIG, TIG & ARC |
| Lathe Machine (Pedestal) | 3 No's 7.6' ft, 6' ft, 4' ft |
| Power Back-Up | Kirloskar Green 125 KVA for 24 hrs back-up |
Portable CMM
| FARO | 12ft , 8ft , 6ft |
| ROMER | 12ft , 10ft |
CMM Coordinate Measuring Machine
| CIMTRIX -USA | 3000 X 1500 X 1200 mm |
| CIMTRIX -USA | 1800 X 1000 X 900 mm |
| Accurate Cordimajor | 2000 X 1000 X 900 mm |
| Accurate Cordimajor | 1800 X 800 X 800 mm |
| Stiefelmayer Double Column | 6000 X 3000 X 2500 mm |
